__BN_FullTankLevel

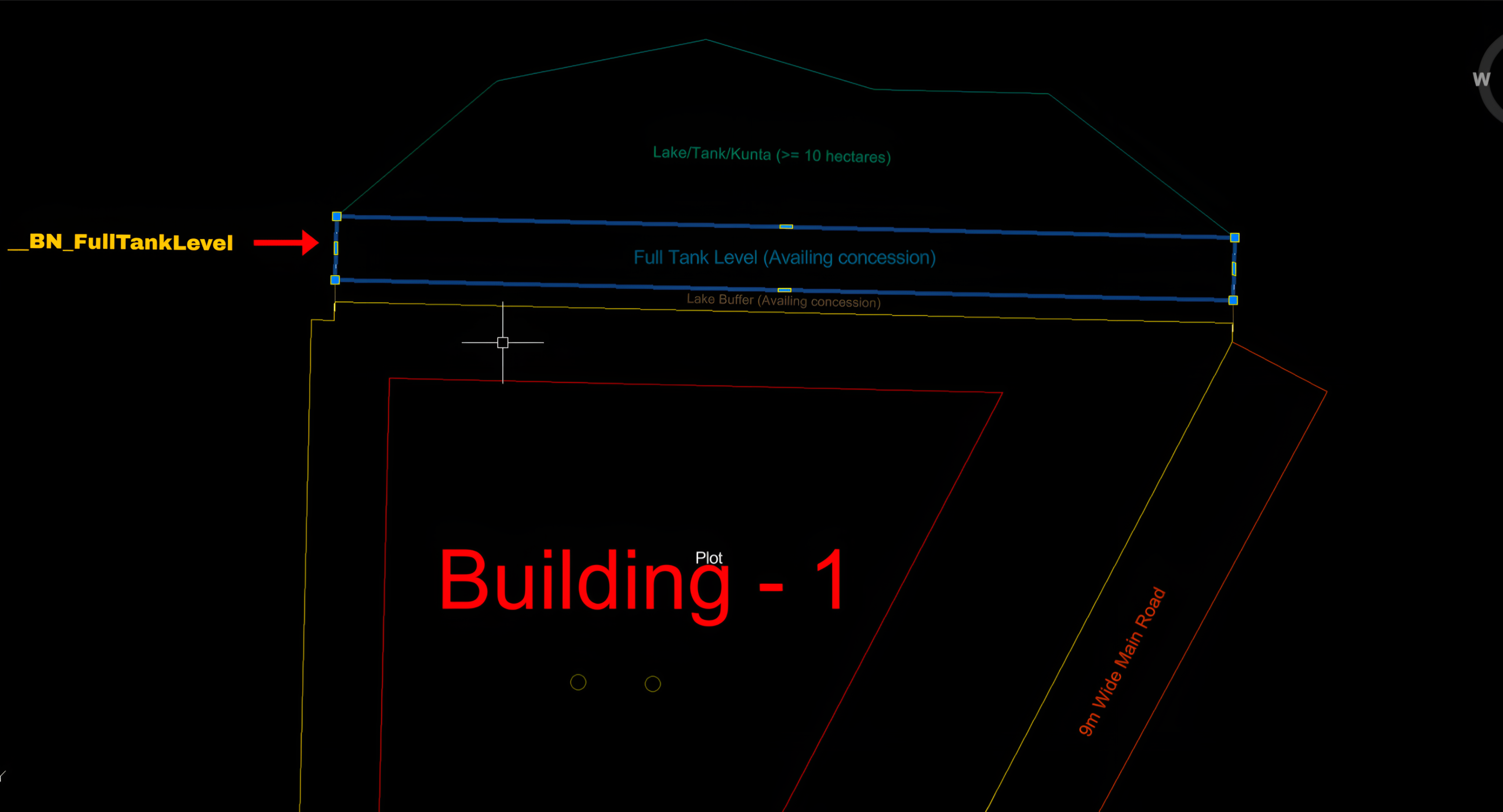

Reference Image​

__BN_FullTankLevel

📐 Drawing Conventions​

  • Full Tank Level should be drafted within the Plot accurately reperesenting the plot area affected by Full Tank Level of a Lake
  • Full Tank Level should be drafted coinciding with a Water Body of type Lake.

✏️ Data Inputs​

  • Avail Concession [YES | NO]

📏 Allowed Geometric Types​

  • Closed Polyline

🏗️ Applicable Project Types​

  • Building Permission
  • Layout With Housing And Gated Community & Layout With Housing Without Gated Community
  • Layout With Open Plots
  • Compound Wall
